Lift and transport loads from delivery trucks to docks, or use to inventory storage systems
The platform lifts approximately 1″ per winch rotation
Features (2) 6″ x 2″ poly-on-poly rear wheels with (2) 2″ semi-steel front wheels
Located on the handle are (2) rollers to ease loading into delivery trucks
Material Handling & Storage, Platform Lift Stacker

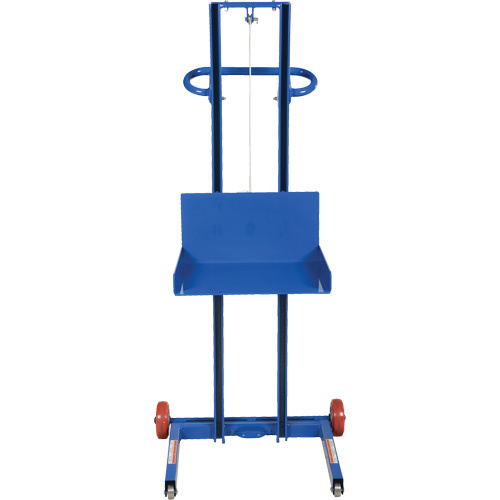

Vestil LLPW-500-FW Low Profile Lite Load Lift Low Profile Lite Load Lift, Hand Winch Operated, 400 lbs. Capacity, 55″ Max Lift – Each
$1,306.56
| Weight | 144 lbs |
|---|---|
| Dimensions | 2.54166 × 5.54166 × 2.31666 in |
| Lifting Capacity | 400 lbs. |
| Platform Dimensions | 20" W x 20" D |
| Lowered Platform Height | 1/4" |
| Raised Platform Height | 55" |
| Operation Type | Hand Winch |
| Frame Material | Steel |
| Load Center | 10" |
| Machine Weight | 134 lbs. |
| Overall Dimensions | 30-1/2" W x 33-3/16" L x 66-1/2" H |
| Swivel Caster Size | 2" |
| Rear Wheel Size | 6" |
