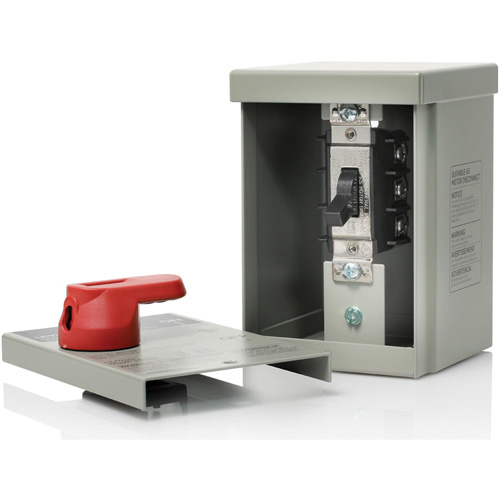

The Leviton N3302-DS (XH530) is a robust industrial-grade disconnect switch designed for demanding operational environments. It serves as a reliable AC motor starting switch and manual motor controller, specifically engineered for motor disconnect applications where safety and durability are paramount.
Key Specifications and Features:
– Electrical Capacity: This unit is rated for 30 Amp, 600 Volt, 1-Phase operation with a 2-Pole configuration, making it ideal for a range of industrial motor control needs. It is engineered to withstand a dielectric voltage of 2200V for 1 minute.
– Robust Enclosure & Protection: Housed in a Type 3R enclosure, this switch features a toggle-in mechanism and boasts high ingress protection ratings of IP67 and IP69K. It is designed for high-temp and high-pressure washdown applications, ensuring performance in harsh industrial settings.
– Durable Construction: Manufactured from high-quality Thermoplastic Polyester material, the switch is built for industrial-grade performance and longevity.
– Operational Endurance: Engineered for reliability, the switch delivers an endurance of 6,000 cycles under an inductive motor type load, ensuring long-term operational integrity.
– Agency Compliance: The N3302-DS (XH530) adheres to strict industry standards, including UL 508, confirming its safety and performance for industrial control equipment.
– Enhanced Grounding: For maximum safety, the unit features grounding directly to the enclosure, providing a secure and compliant electrical connection.
– Dimensions: The compact design measures 4.26 Inch W X 5.49 Inch D X 6.15 Inch H, facilitating flexible installation in various industrial setups.
– Warranty: Backed by an industry leading 3-year warranty, ensuring confidence in its long-term performance and reliability.
