Easily adjusts to fit various flanges, I-beams and H-beams
Use on straight or curved track
Can be installed or removed at any position on the beam
Heavy-duty cast iron wheels
Deep width flange provides superior contact with the beam
Safety plate included
Meets ASME B30.16
Plain Trolleys

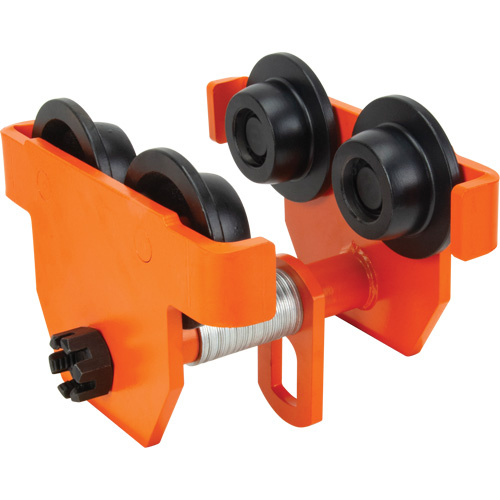

KLETON LW552 Adjustable Trolley with Safety Plates, 1000 lbs. (0.5 tons)-(Each)
$101.25
| Weight | 9.84 lbs |
|---|---|
| Dimensions | 0.83333 × 0.31667 × 0.54167 in |
| Capacity | 1000 lbs. (0.5 tons) |
| I-Beam Flange Width | 2-5/16" – 4-14/16" |
| A | 7-11/16" |
| B | 8" |
| C | 7-3/8" |
| E | 7/8" |
| H | 4-7/16" |
| Net Weight | 11.25 lbs. |
