A one-of-a-kind industrial diagnostic tool that combines accurate temperature measurement with the ability to image up to 1080?C (1976?F)
Patented FLIR MSX? (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, and super resolution allows you to upscale images from 160 ? 120 to 320 ? 240 for superior detail
Ideal for high-temperature industrial uses such as measuring the heat of glass furnaces, kilns, and forges as well as manufacturing applications, allowing you to accurately target potential faults, troubleshoot repairs, and monitor processes
METERLiNK? App enables remote monitoring of measurements and seamless documentation of inspection data, making it simple to produce comprehensive reports while in the field
METERLiNK? app has the ability to connect with up to seven FLIR compatible meters at once
IP54 rated, with a 2 m drop test rating for durability
Built-in LED worklight for better visibility in dark or poorly lit areas
Instruments, Thermal Imager

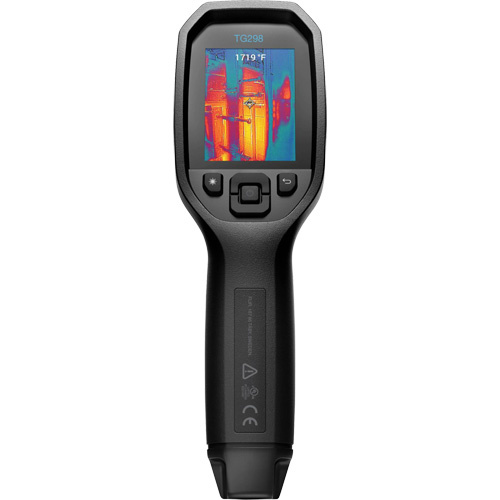

FLIR 87506-0606 FLIR TG298 30:1 High Temperature Spot IR Thermal Imaging Camera with Bullseye Laser TG298 30:1 High Temperature Spot IR Thermal Imaging Camera with Bullseye Laser, 320 x 240 pixels, -25° – 1080°C (-130° – 1976°F), <70 mK
$1,189.99
| Weight | 73 lbs |
|---|---|
| Dimensions | 1.16667 × 0.91667 × 0.91667 in |
| Display Size | 2.4" |
| Display Type | Built-in/All PCs & Smartphones |
| Resolution | 320 x 240 pixels |
| Thermal Sensitivity | <70 mK |
| Temperature Range | -25? – 1080?C (-130? – 1976?F) |
| IR Resolution | 160 ? 120, Super Resolution 320 ? 240 |
| Accuracy | ?2.5% or 2.5?C (6?F) at 0?C to 50?C (33?F to 122?F ) and 100?C to 400?C (213?F to 752?F), and ?3% or 3?C (7?F) at ?25?C to 0?C (?13?F to 32?F) and >400?C (>752?F) |
| Field of view (FOV) | 57? ? 44? |
| Image Modes | MSX? (Multi Spectral Dynamic Imaging) & Visual with temperature reading |
| Storage Media | 8 GB |
| Colour Palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava |
| Battery Type | Rechargeable Li-ion Battery |
| Battery Operating Time | 5 hours continuous scanning, 4.5 hours with laser on |
| Charging Time | 3 hours to 90%, 4 hours to 100% |
