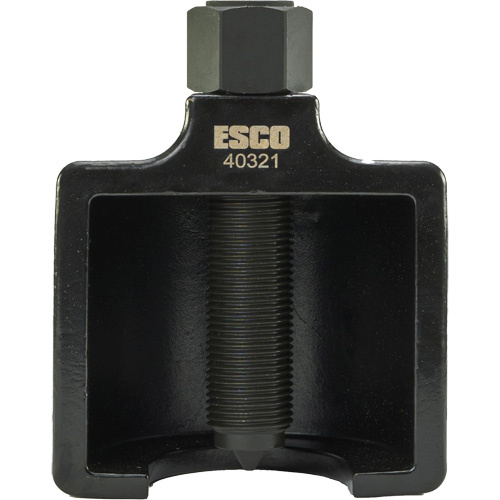

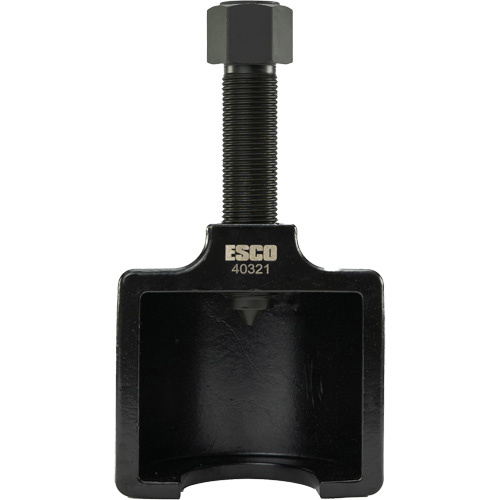

The Esco 40321 Medium-Duty Pitman Arm Puller is engineered for the efficient and safe removal of stubborn Pitman arms from medium-duty trucks and transportation buses. This specialized tool eliminates the need for hazardous hammering or cutting torch methods, ensuring operator safety and component integrity.
Key Specifications and Features:
– Impact Drive Size: Accepts a 1 1/4 inch (32mm) impact drive for robust power transmission during operation.
– Length of Screw: Features a 5 inch (127mm) long screw, providing ample reach for various Pitman arm configurations.
– Unit Weight: Weighs 5.4 lbs. (2.5kg), offering a balanced combination of durability and manageability.
– Maximum Jaw Opening: Provides a maximum glove opening of 3.5 inches (89 mm) to accommodate a wide range of Pitman arm sizes.
– Maximum Jaw Height: Offers a maximum jaw height of 3 inches (76 mm), ensuring a secure grip on the component.
– Enhanced Safety Protocol: Designed to eliminate the dangers associated with traditional Pitman arm removal techniques like hammering or cutting torches.
– Air Tool Integration: Compatible with air impact wrenches up to a ½ inch drive, enabling efficient and powerful removal operations.
