Fully welded cylinder and frame provide superior strength and extended service life
Extra thick jack base provides exceptional support and stability in severe conditions
The compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more
Chrome-plated piston for extra rust and corrosion resistance
Fitted with a safety valve to prevent overloading
Double spring design for controlled and safe descent while releasing pressure from the cylinder
Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights
Design to be operated using air or manually with included two-piece lifting/lowering handle
Includes 4 ft. swivel end air hose with easy to use handheld push-button air trigger
Air trigger includes 1/4 in. NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch- for easier constant airflow while raising of the jack to load
Fitted with a heavy-duty constructed chrome-plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application
Bottle Jack, Fleet & Automotive

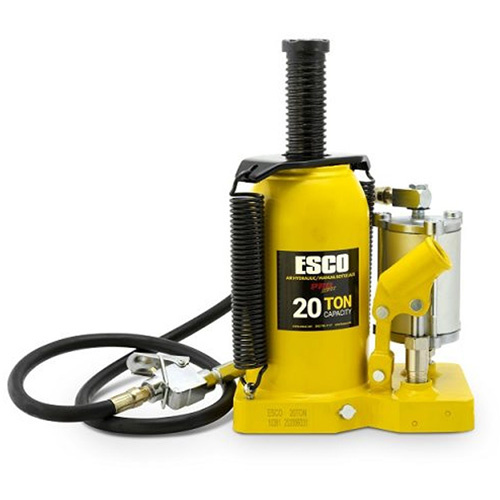

Esco 10381 Pro Series Bottle Jack Pro Series Bottle Jack, 20 Ton(s), Air Hydraulic, 20″ Raised Height – Each
$505.22
| Weight | 42 lbs |
|---|---|
| Dimensions | 0.875 × 0.67708 × 0.95833 in |
| Lifting Capacity | 20 Ton(s) |
| Lowered Height | 10" |
| Raised Height | 20" |
| Operation Type | Air Hydraulic |
| Ram Travel | 6" |
| Screw Adjustment | 4" |
| Saddle Width | 1-3/4" |
| Base Thickness | 1-1/4" |
| Base Size | 8-7/8" L x 5-3/4" W |
| Air Inlet Fitting | 1/4" NPT |
| Air Pressure | 110 – 125 PSI |
| Manufacturer's Warranty | 1 Year |
