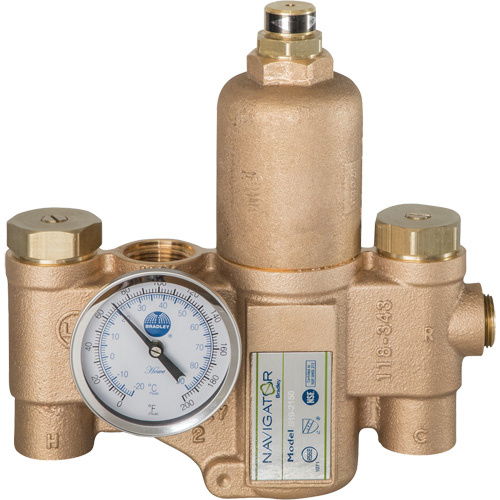

This Emergency Eyewash Thermostatic Mixing Valve is engineered to deliver a consistent and safe tempered water supply for critical emergency eyewash and face wash stations. It is designed to meet stringent safety requirements, ensuring immediate access to tepid water in industrial and laboratory settings.
Key Specifications and Features:
– Maximum Operating Pressure: Withstands a maximum operating pressure of 125 PSI (860 kPa).
– Flow Rate Performance: Provides a flow rate of 19.5 GPM at 30 PSI, with a maximum valve capacity of 37 GPM at 60 PSI.
– Connection Specifications: Features 3/4 inch NPT incoming connections and a 1 inch NPT outlet for robust plumbing integration.
– Dimensional Height: Measures 8 inches in height, facilitating integration into various setups.
– Safety Compliance: Exceeds ANSI Z358.1 and is certified to ASSE 1071 standards, ensuring reliable performance for emergency fixtures.
– Temperature Control: Incorporates a reliable liquid-filled thermostat with a minimum temperature differential of 15 degrees for precise water temperature regulation.
– Monitoring Capability: Equipped with an integrated dial thermometer for straightforward temperature verification.
– Design Integration: Optimized as a single valve design, ideally suited for emergency face and eyewash units, including those utilizing a piston control mechanism.
